LED Wall Pack (STA-WP50 / STA-WP51 / STA-WP52)

Specifications

Model	Type	Wattage	Max Lumens	CCT	Efficacy	Certifications
STA-WP50	Semi-cutoff	60 / 90 / 100 / 120W	18,000 lm	3000 / 4000 / 5000K	150 lm/W	UL & DLC 5.1
STA-WP51	Mini	30 / 20 / 15W	3,900 lm	3000 / 4000 / 5000K	130 lm/W	ETL & DLC 5.1
STA-WP52	Full cutoff	60 / 90 / 100 / 120W	19,200 lm	3000 / 4000 / 5000K	160 lm/W	UL & DLC 5.1

STA-WP50: die-cast aluminum with borosilicate prismatic/tempered glass; built-in dusk-to-dawn photocell; Type IV distribution; 5-year warranty

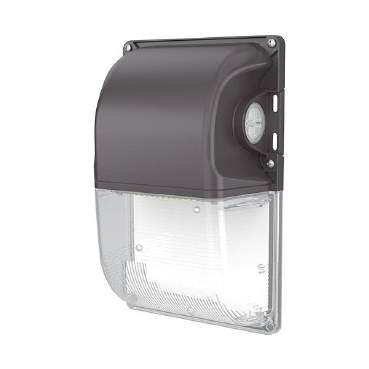

STA-WP51: ADC12 die-cast aluminum + PC lens; IP65; 2KV surge protection; 0–10V dimming; 5-year warranty

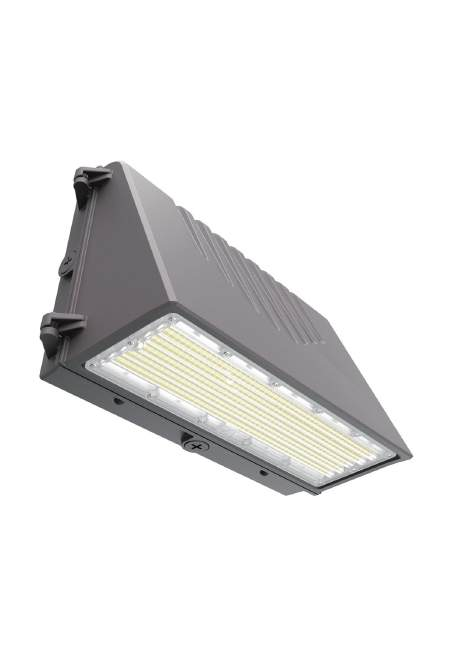

STA-WP52: die-cast aluminum + PC lens; IP65; 6KV surge protection; 0–10V dimming; Type III distribution; microwave sensor & emergency driver optional; 5-year warranty

Security lighting, building perimeters, entryways, stairwells, corridors, factories, warehouses, walkways.

Model: STA-WP50 / STA-WP51 / STA-WP52

Warehoused in New Jersey & Texas. Free samples for qualified projects.
